3-Stage Solar Controller

This solar regulator (or controller) comes with an LCD display and 4 USB ports to charge your 12V loads. It comes with reverse current protection and low heat production to protect your dual battery system.



Features:

• Built-in industrial upgraded microcontroller.

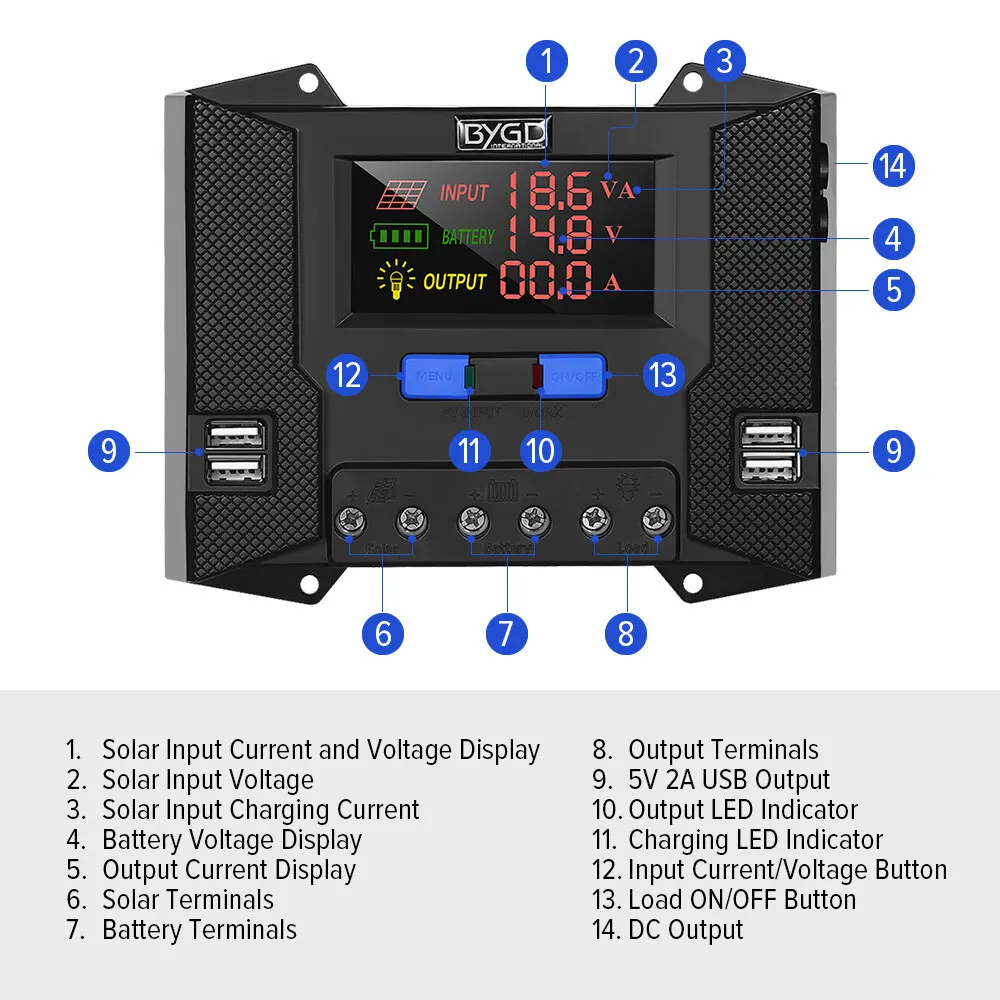

• Digital display
• 4 USB ports
• 3-stage PWM charge management
• Auto-detection for 12/24V
• Built-in short-circuit protection, open-circuit protection and over-load protection
• Dual MOSFET reverse current protection
• Only for off-grid PV Solar Systems
• Suitable for lithium, deep cycle, lead-acid batteries



Specifications:

• Rated Voltage: 12V/24V (auto detection)
• Maximum current: 30A

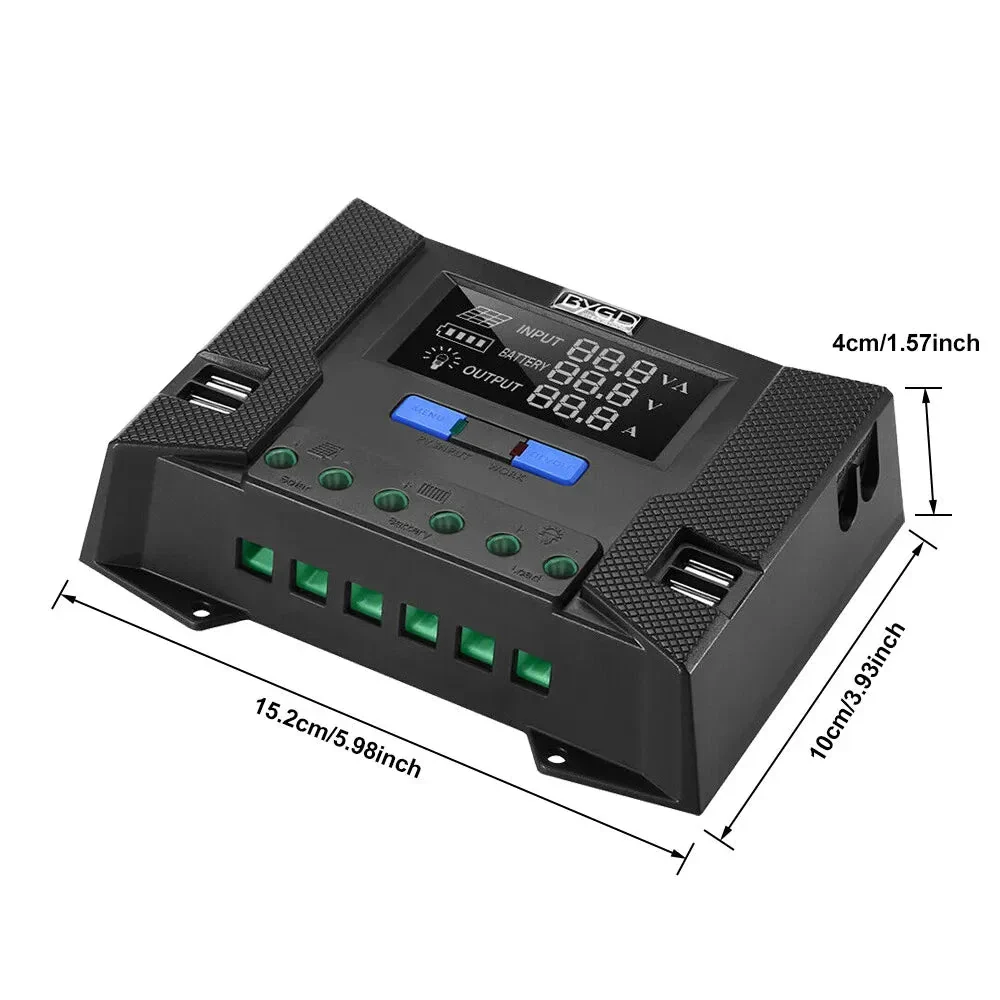

• Dimensions: 15.2 x 10 x 4 cm



Safety Instructions:

• Make sure your battery has enough voltage for the controller to recognize the battery type before the first installation.
• The battery cable should be as short as possible to minimize loss.
• The regulator is only suitable for lithium, deep cycle, lead-acid batteries, including AGM
• It is not suited for nickel-metal hydride or other batteries.
• The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

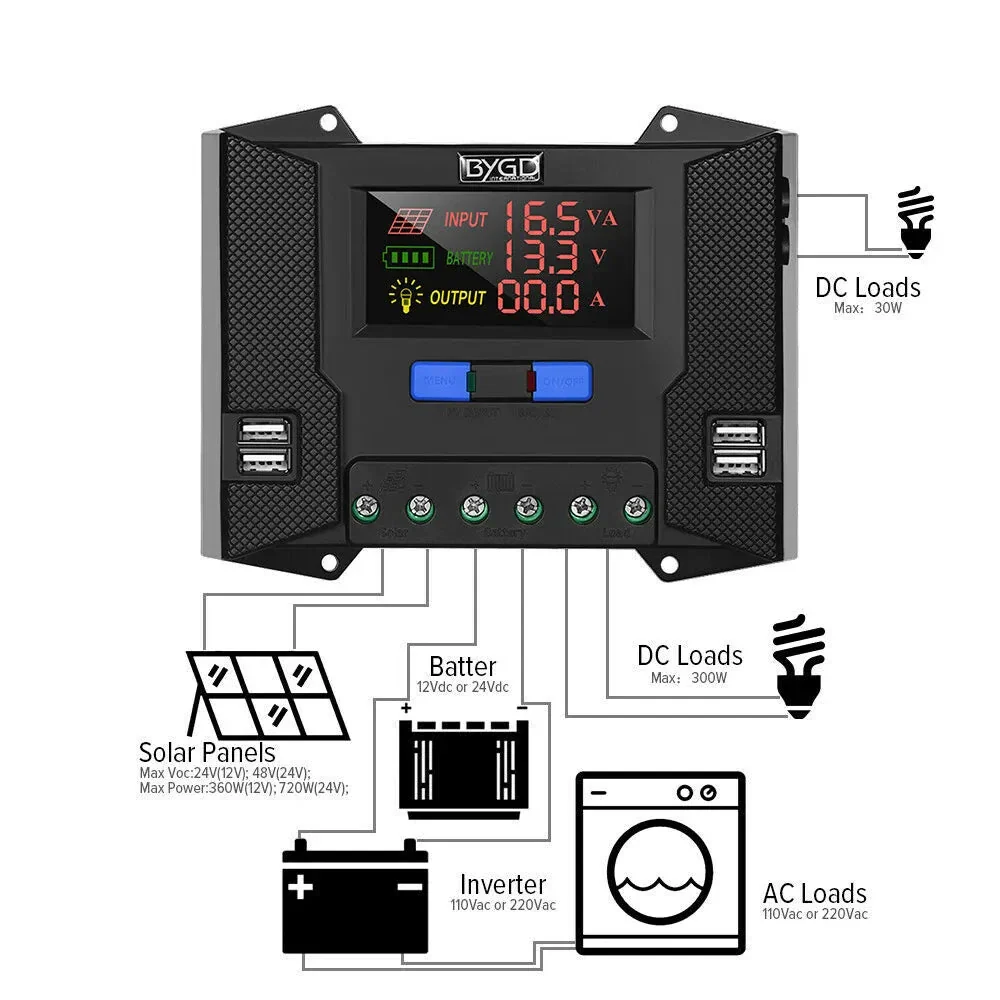

System Connection:

1. Connect the battery to the solar charge regulator - plus and minus. It will show (1) if it detects a 12V battery or (2) if it detects a 24V battery.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the load to the charge regulator - plus and minus.

Package Contains:

• 1 x Battery Charge Controller
• 1 x User Manual
