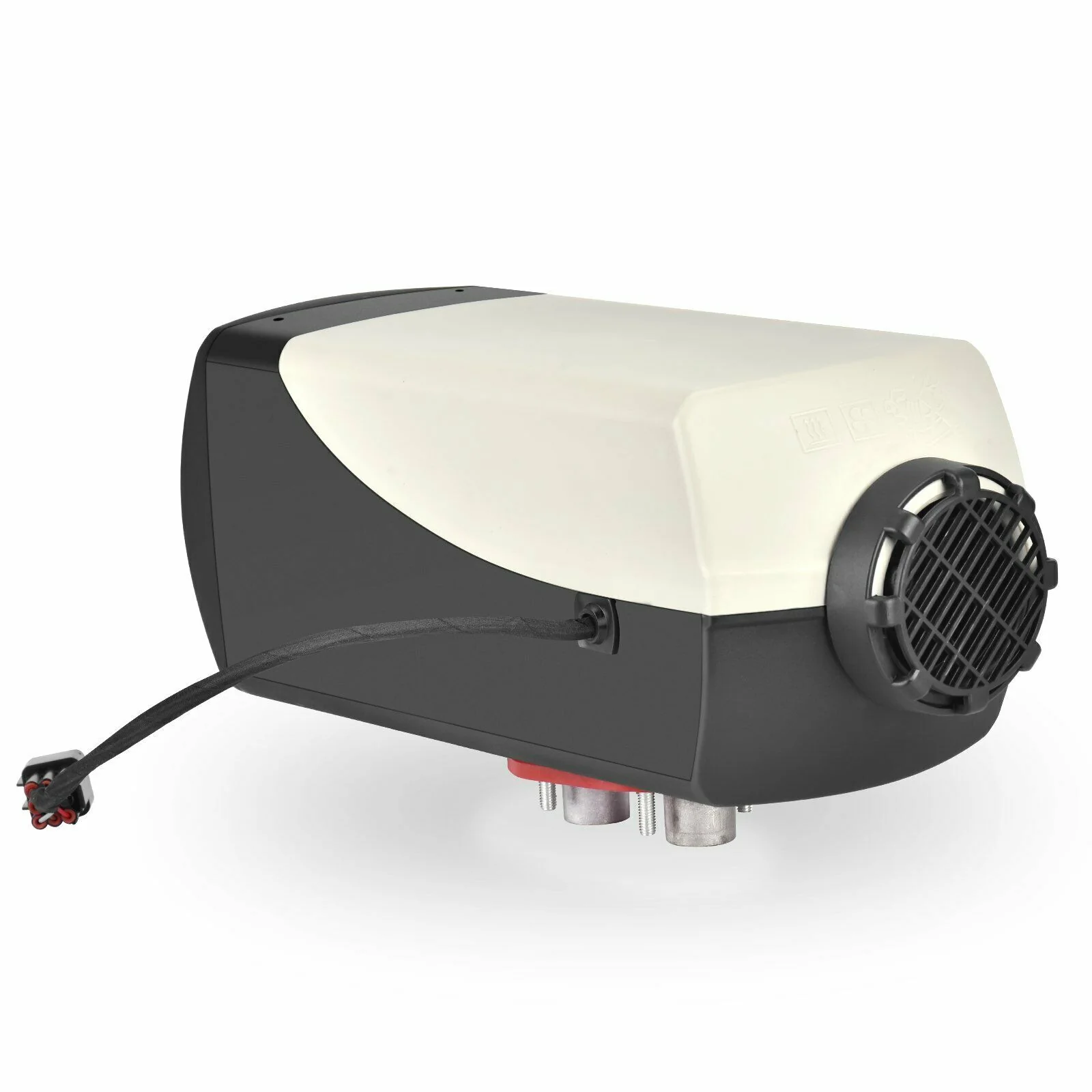

5kW Diesel Air Heater Full Installation Kit (2-Year Warranty)

This 5kW Diesel Heater is a portable and compact heating solution designed for caravans, campervans, trailers, sheds, cabins and motorhomes

The heater has a maximum output of 5 kilowatts, making it powerful enough to heat up large areas of up to 50 square meters.

The Diesel Heater 5KW has a simple control panel, allowing you to adjust the temperature to your desired level. This heater has the highest standards of safety and efficiency. The compact device features quiet operation and is suitable for long periods of operation due to low fuel and power consumption.

Installation of the Diesel Heater 5KW is relatively simple and can be done by following the instructions provided. However, professional installation is recommended. Once installed, this heater provides a reliable and convenient heating solution for your outdoor adventures.

This product comes with a remarkable 2-Year Warranty, providing you with added peace of mind and assurance in your purchase.

🚨EARLY SEASON SALE. Our low price until stock is cleared.

Features:

• Compact structure and easy to install
• Advanced control technology, with reliable operating conditions.
• Temperature control
• Suitable for long periods of operation due to low fuel and power consumption
• Remote and LCD control included
• Continuous monitoring

• 2-Year Warranty and customer service in Australia

Applications:

• Freight Vehicles: Efficiently heat the cab for a comfortable driving experience.

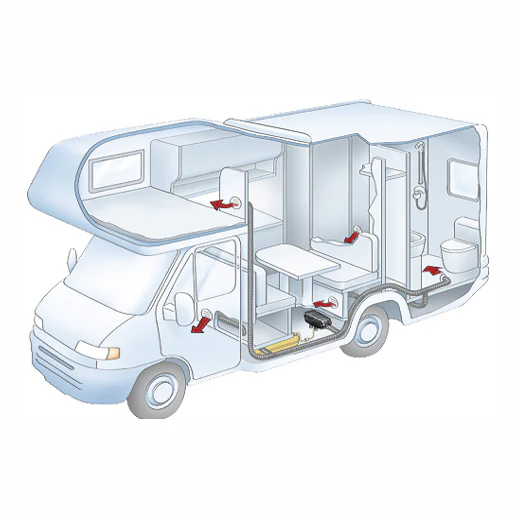

• Recreational Vehicles: Ideal Diesel Heater for caravans, vans, buses, motorhomes, and RVs, ensuring warmth during travels.
• Marine Use: Suitable for boats, providing reliable heating on the water.
• Outdoor Adventures: Perfect for camping tents, offering a cozy environment in the wilderness.
• Home and Workspace: Great for heating garages, sheds, and tiny homes, maintaining a comfortable temperature in smaller spaces.
• Engine Preheating: Preheats engine coolant to minimize wear and tear when starting in low temperatures, extending the engine's lifespan.

Specifications:

• Heater Power: 5KW
• Fuel: Diesel
• Rated Voltage:12V
• Fuel Consumption: 0.64 L/h
• LCD Display: digital thermostat with temperature control
• Heater temperature: -40℃~+50℃
• Oil pump temperature: -40℃~+40℃

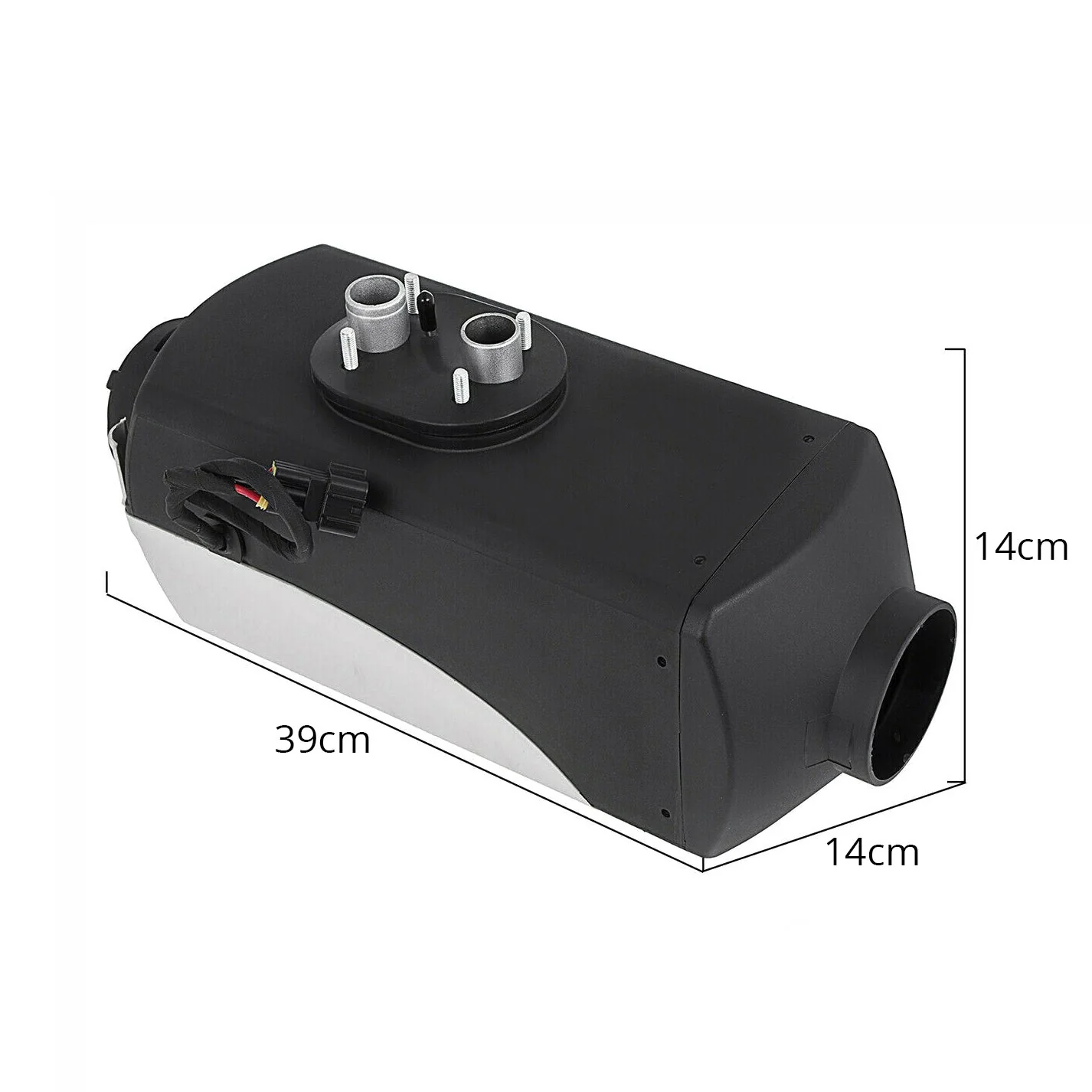

• Dimensions: 390 × 140 × 140mm

Package includes:

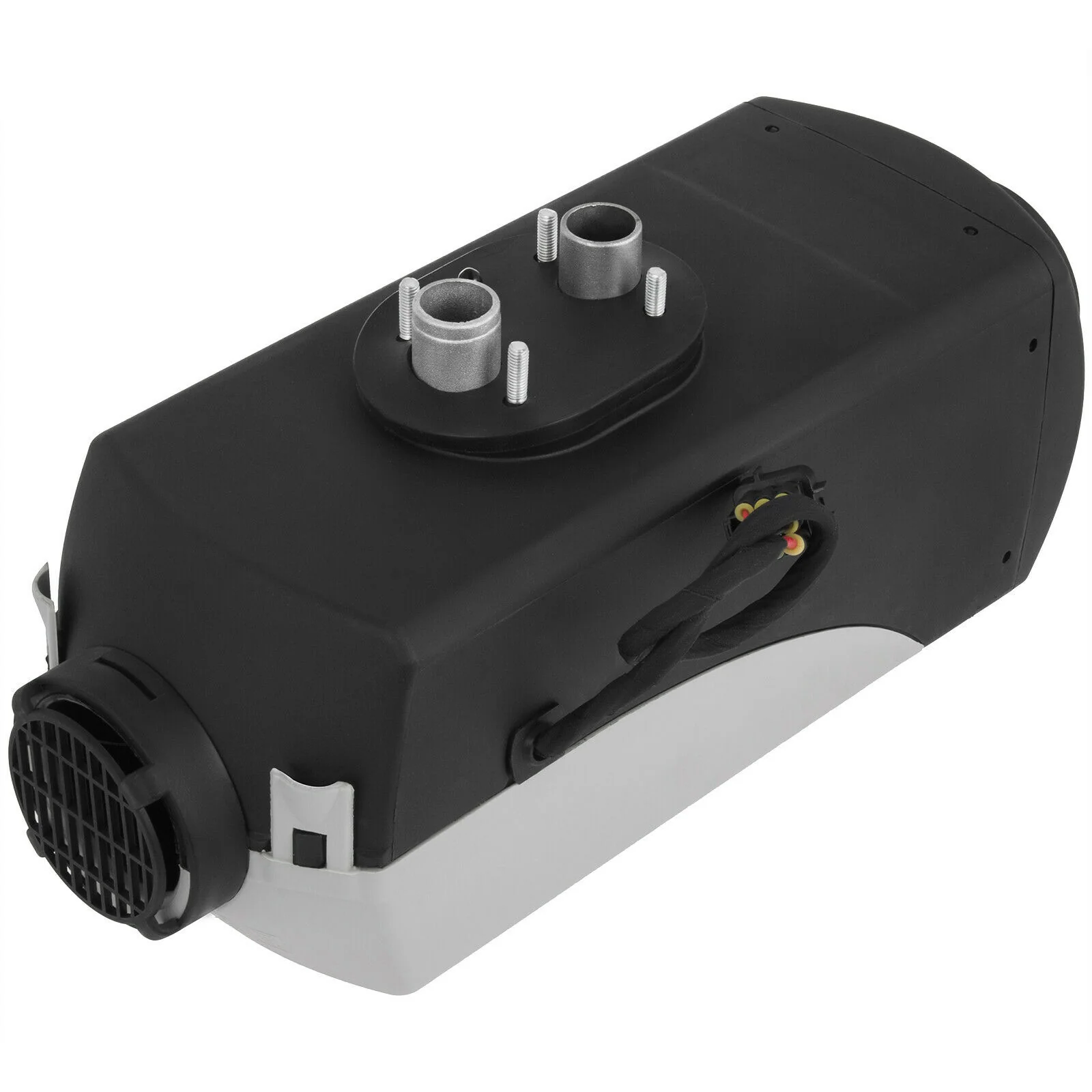

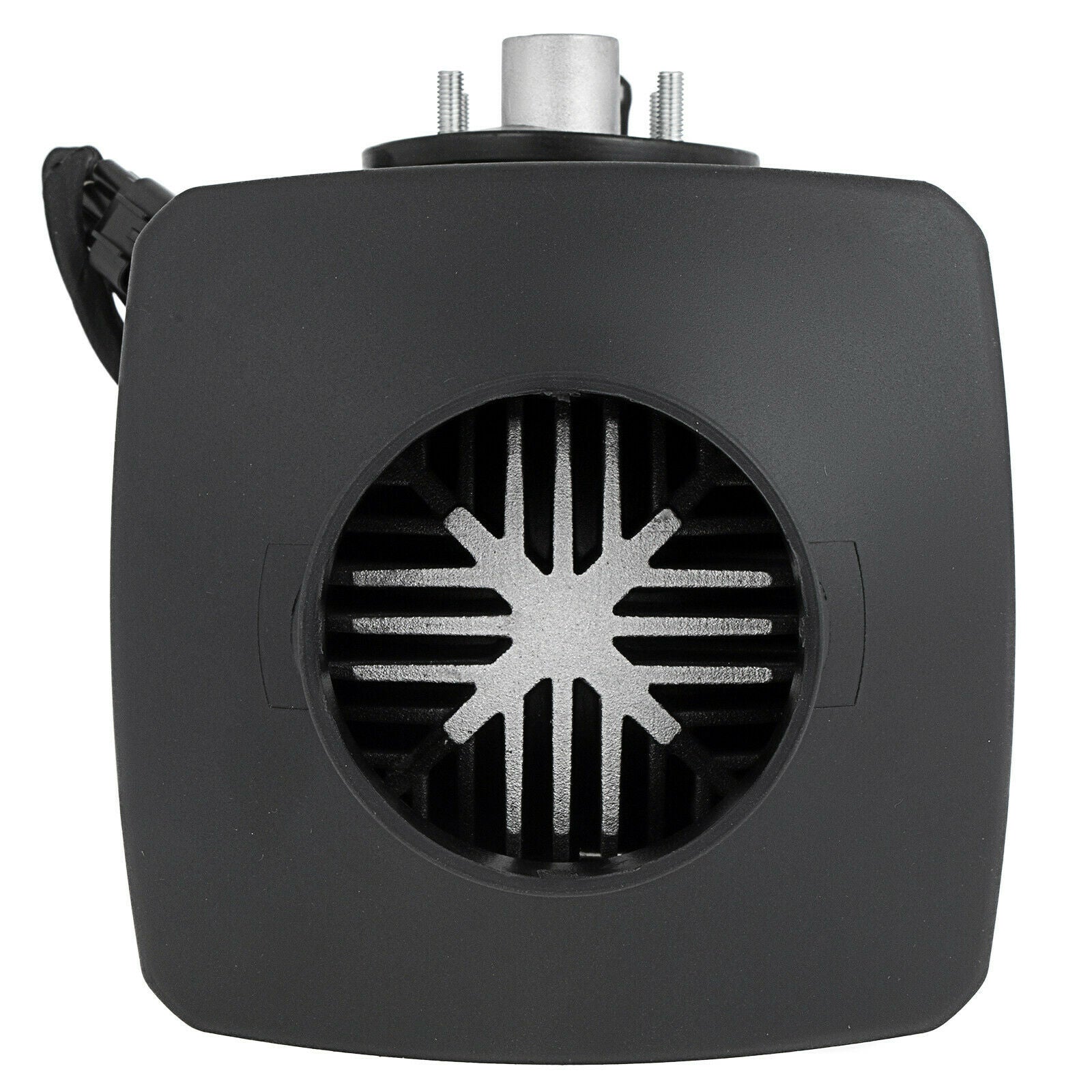

• 1x 5kW Diesel Heater

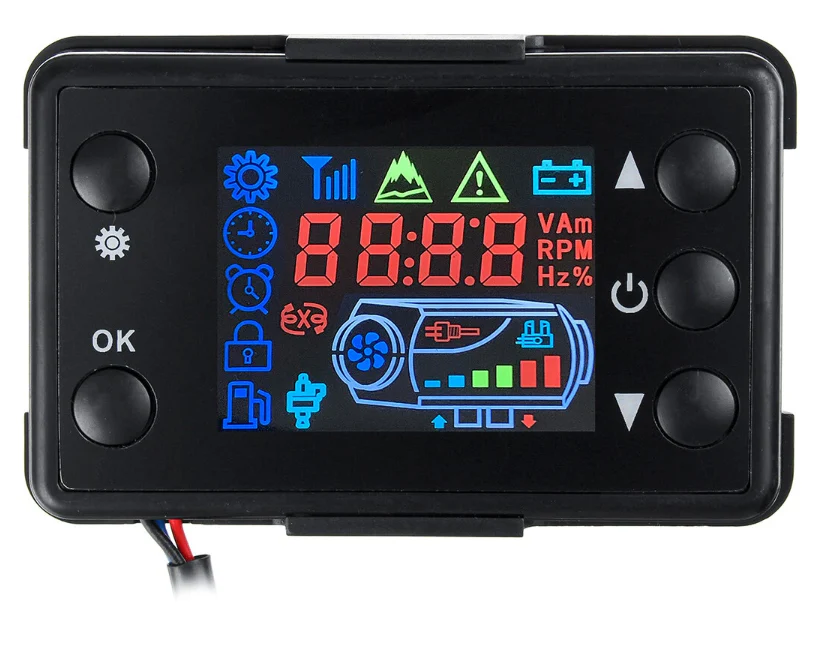

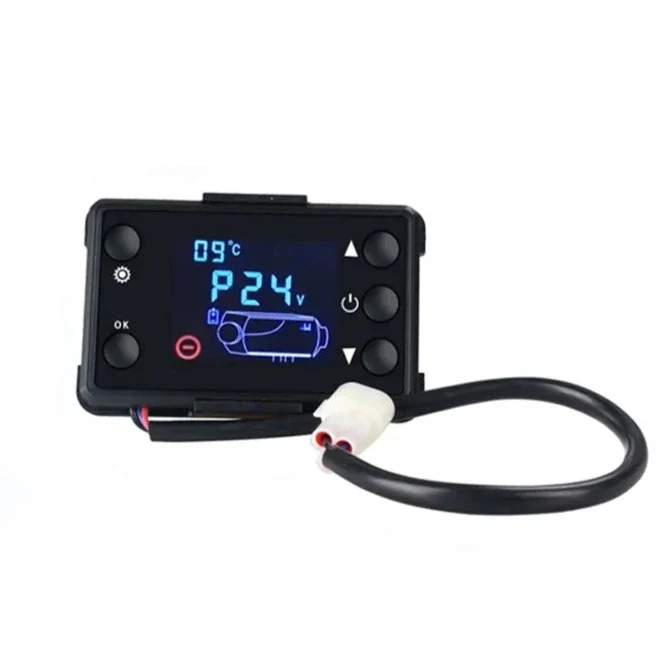

• 1x LCD Controller
• 1x Air intake Cover

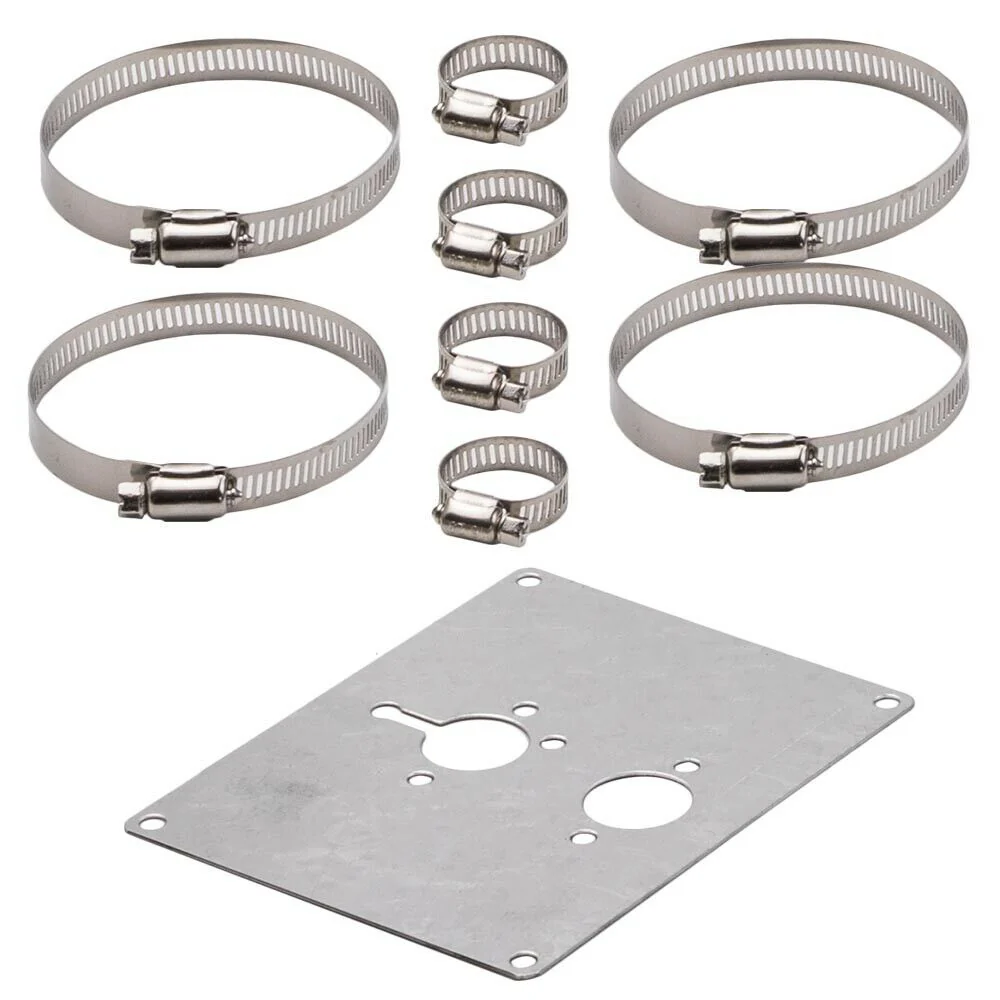

• 1x Mounting Plate

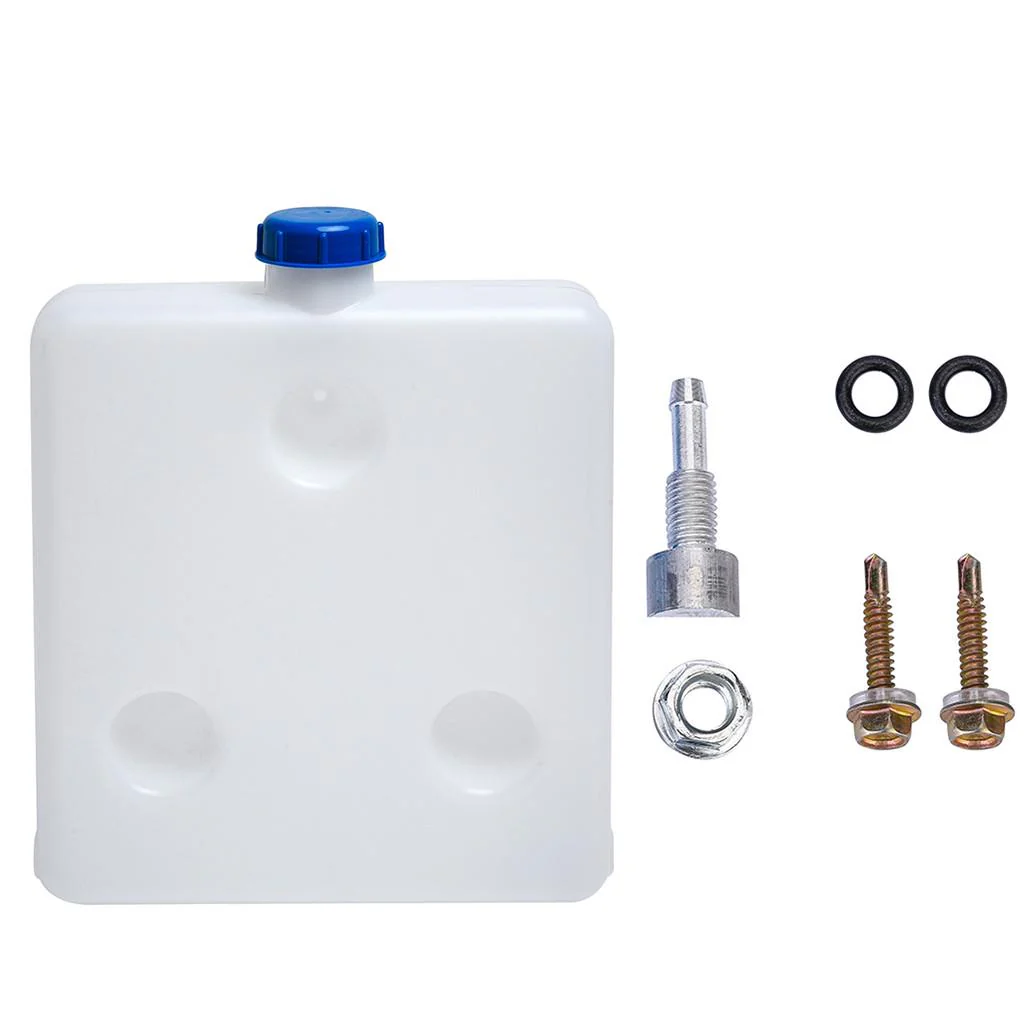

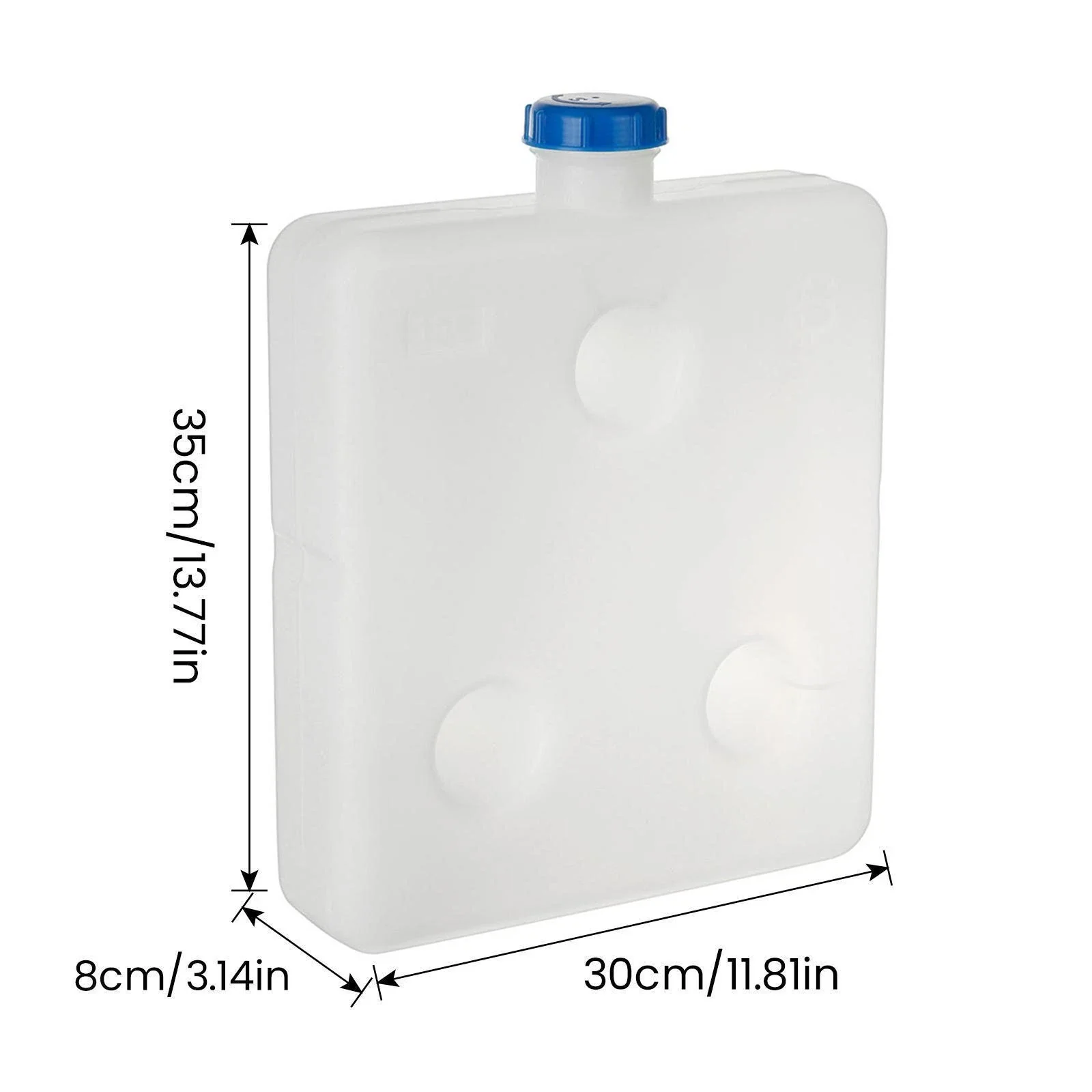

• 1x Fuel Tank 10L

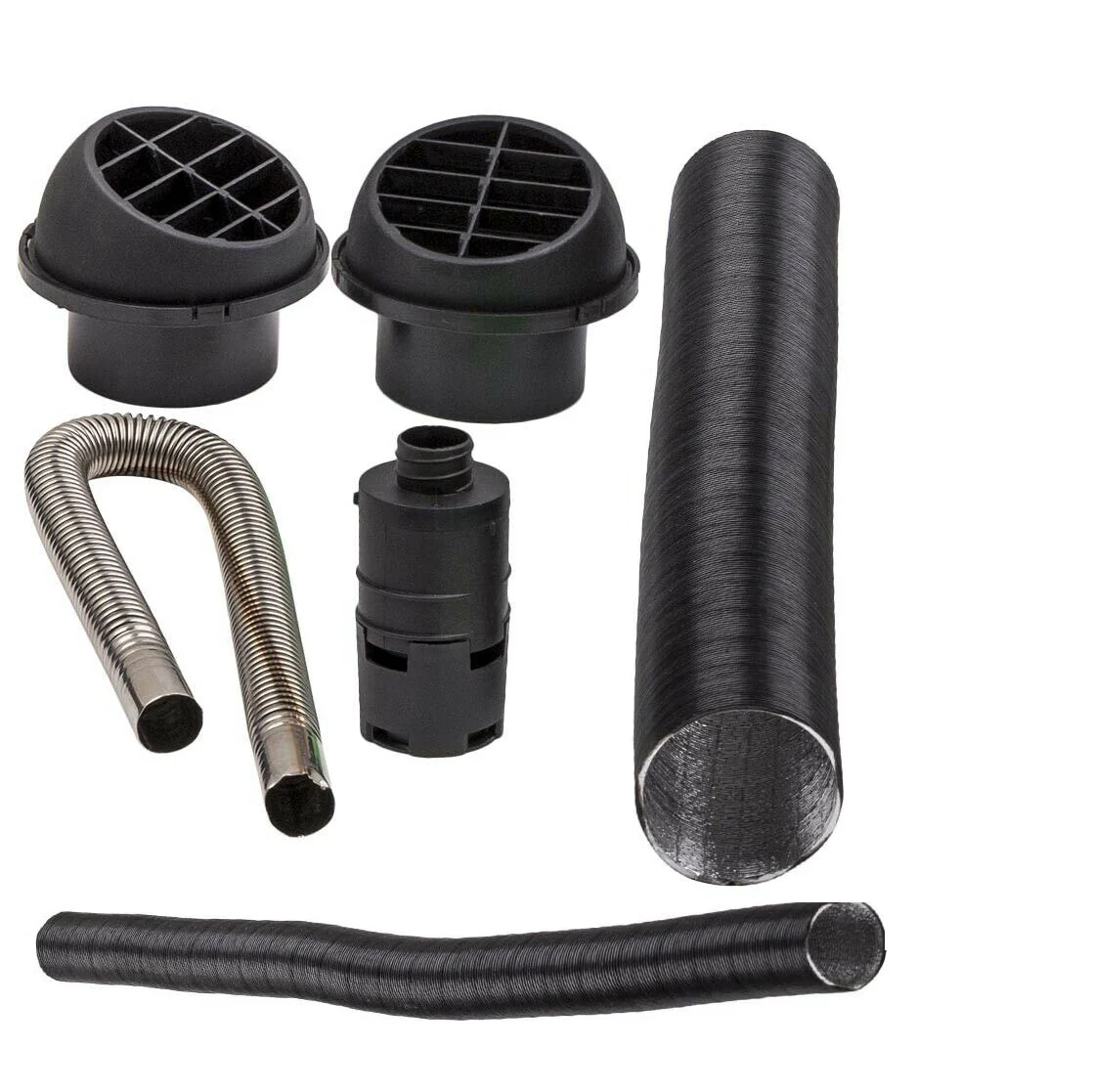

• 1x Air intake pipe
• 1x Exhaust pipe
• 1x Fuel pump
• 1x Fuel pump shock clip
• 1x Fuel pickup for existing tank
• 1x Diesel filter
• 1x Fuel line
• 1x Wiring harness

• 1x Outlet Pipes (can be cut in two pieces)
• 2x Vents

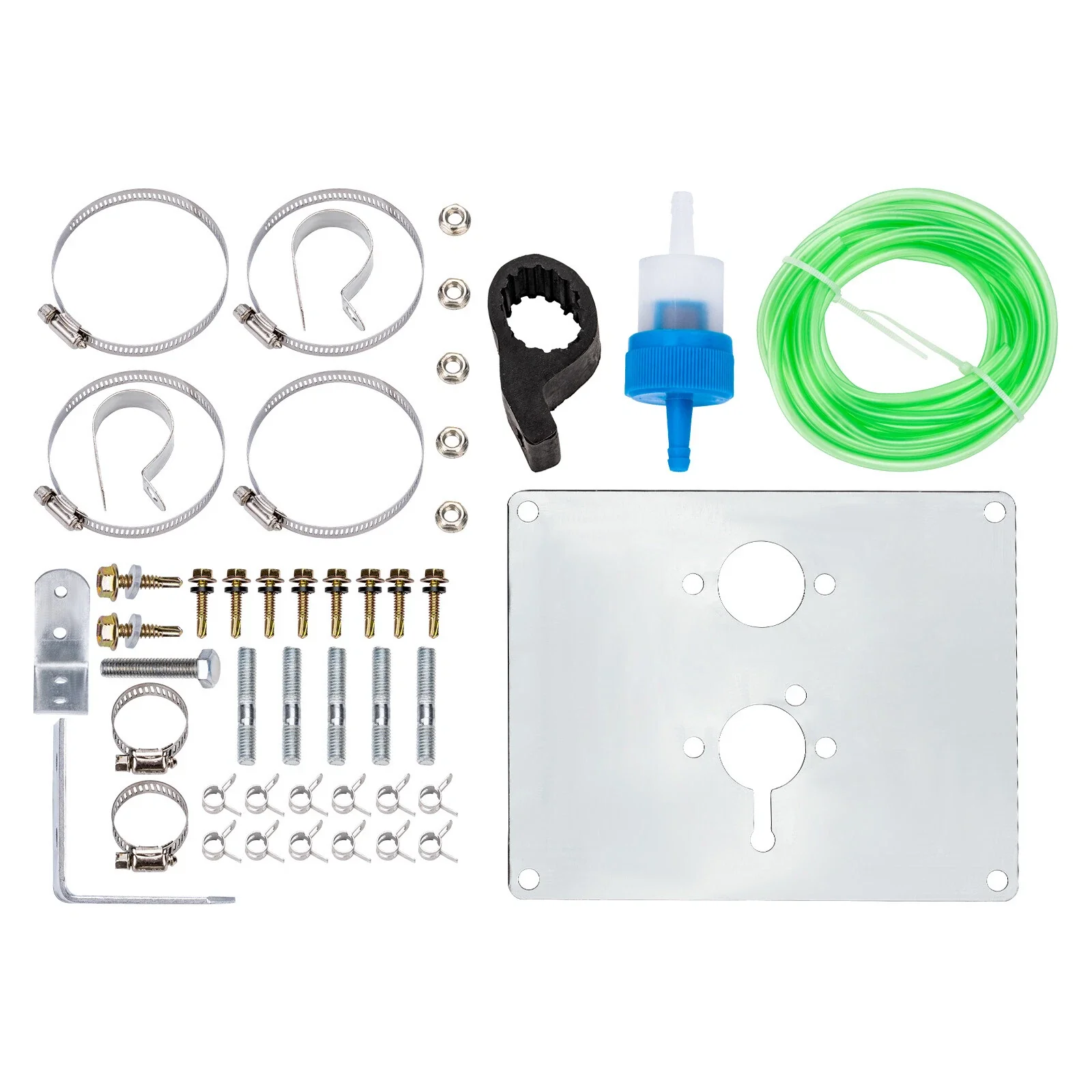

• 1x Installation kit
• 1x Exhaust silencer
• 1x Air filter
• 1x Remote control
• Screws

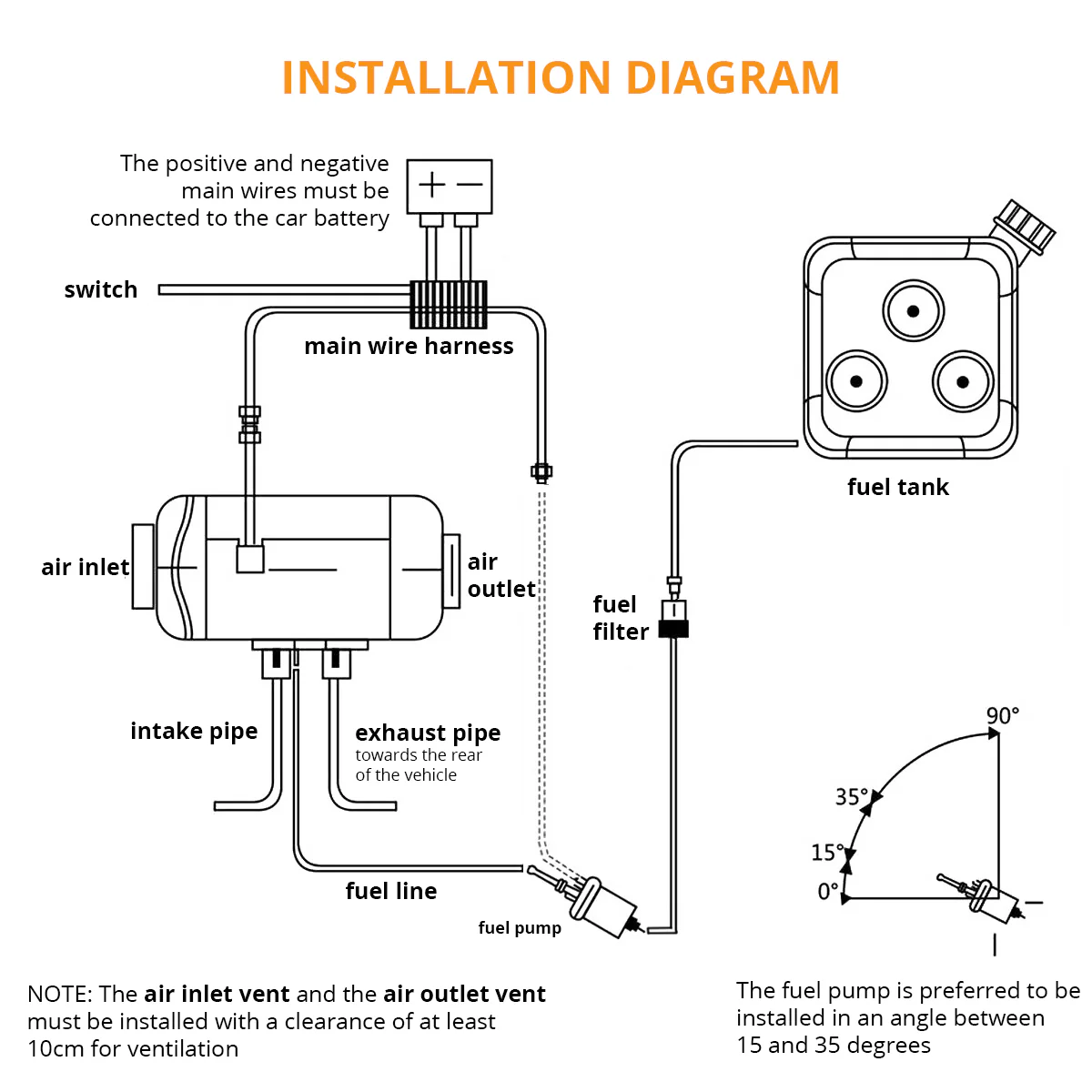

Installation Notes:

• The air inlet vent and the air outlet vent must be installed with a clearance of at least 10cm for ventilation
• The oil pump is preferred to be installed at an angle between 15 and 35 degrees
• The positive and negative main wires must be connected to the car battery
• Adding a carbon monoxide detector is highly recommended
• Professional installation is highly recommended
