Digital Power Meter
All-in-one power meter, voltmeter, amp-hour meter and energy meter. This digital power meter features a real-time display of the voltage, current draw, and power consumption. It is the ideal addition to any low voltage DC system.
Features:
- Prevents peak currents damaging battery, ESC, motors, wiring and connectors
- Verifies sufficient operating voltage under load
- Individual cell balancing: set cut-off voltages, check battery capacity health
- Confirms proper battery charger operation (connect between your battery and charger)
- Detect receivers and actual operating current
- Provides 8 electrical readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp)
- Digital backlit LCD display screen: easy to read LCD screen provides clear number readings.
- Real-time reading: continuously provides real-time readings of the amps, volts, and watts
- High precision reading

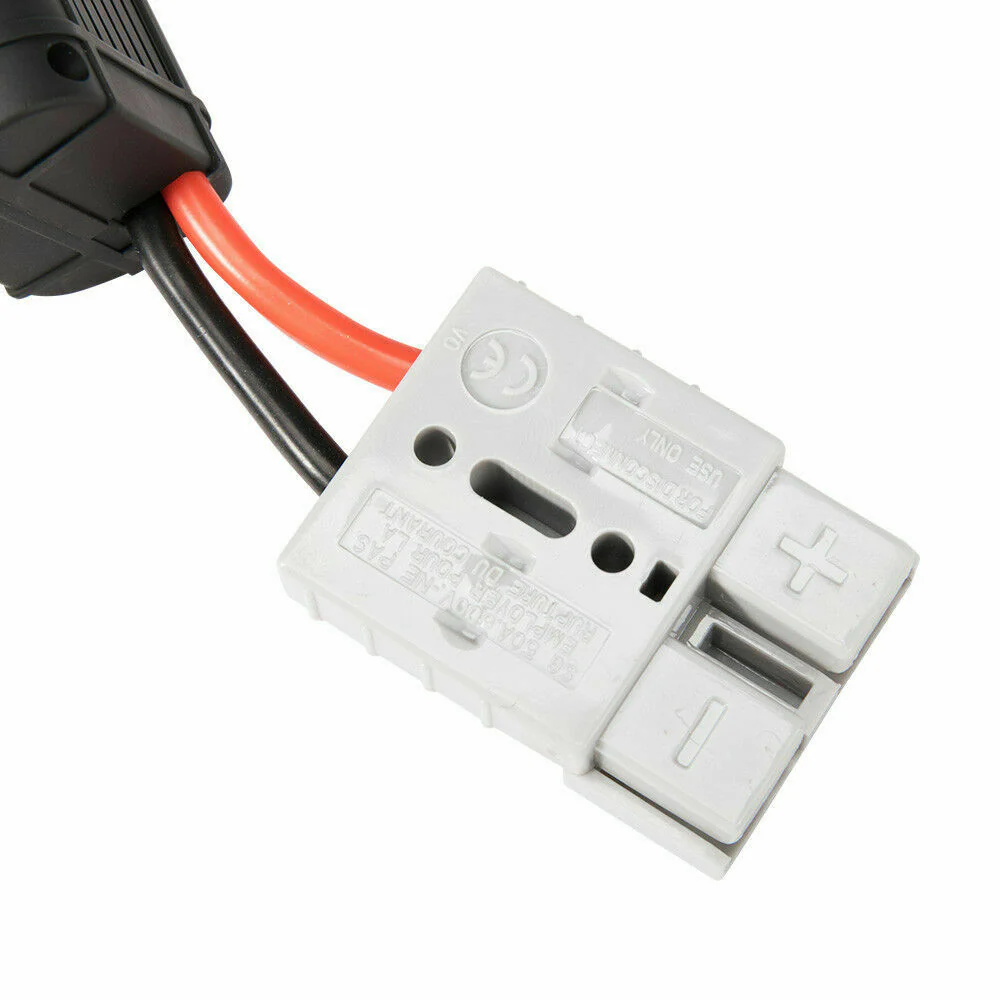

- Two Anderson style plugs included
Specifications:
- Operates from 4.8V to 60V
- Can measure down to 0v with optional auxiliary (great for stress-testing batteries)
- Measures 0 to 150A with a resolution of 0.01A (50 Amp connectors for continuous - up to 150A for short peak bursts only)
- Measures 0 to 60V with a resolution of 0.01V
- Measures 0 to 6554W with a resolution of 0.1W
- Measures 0 to 65Ah with a resolution of 0.001Ah
- Measures 0 to 6554Wh with a resolution of 0.1Wh
- Blue back-lit LCD display
Package Includes:
- 1 x LCD Power Meter with 2 Anderson style plugs
- 1 x User Manual
Shipping: FAST & FREE Australia wide.
Warranty: For your peace of mind, this product comes with a 1-year warranty. We value our customers and wish to make your purchase experience as enjoyable as possible. If something goes wrong with your product, please do not hesitate to contact us for assistance.
